Expect to pay roughly $8 to $25 per foot for material-only galvanized spiral duct in common residential sizes, with heavier gauges, stainless steel, or insulation pushing costs higher, and a basic custom package often starting in the low hundreds of dollars before installation. Your next step is simple: measure your run lengths and diameters, then contact a local fabricator such as Manara Corp for an itemized quote that separates material, fittings, and labour.
TL;DR:
- Small residential duct, 3 to 6 inches in 26 to 24 gauge, costs less per foot than commercial duct, which uses heavier steel.
- Catalogue prices cover straight material only; elbows, reducers, insulation, shop labor, transport, and installation require separate allowances in a complete project estimate.
- For comparable Montreal bids, provide run lengths, diameters, turns, fitting counts, gauge requirements, and access limits, then request separate fabrication, fittings, transport, and installation charges.
- Ask whether the design meets Quebec Construction Code requirements, and confirm fabrication and on site installation timelines separately before scheduling work.
- A spiral duct forming machine is shop equipment, not a project expense; the listed $65,475 example applies to fabricators, not duct buyers.
Table of Contents
- Price breakdown by diameter and gauge for Montreal projects
- What affects price: material, gauge, insulation, and labour
- Sample budgets: what 10 feet, 20 feet, or a small package actually costs
- How to get an accurate quote from a Montreal fabricator
- Why local, in-shop fabrication changes the value equation
- Get a local, code-aware quote from Manara Corp
- FAQ
- Sources
Price breakdown by diameter and gauge for Montreal projects
Spiral duct pricing shifts with two variables above all else: diameter and gauge. Smaller residential runs (3 to 6 inches) use lighter gauge steel, typically 26 to 24 gauge, and cost less per foot than the heavier 22 to 18 gauge material used in mid-size commercial runs (8 to 12 inches) or larger industrial diameters.
Catalogue listings from suppliers such as Sheret’s spiral pipe pages show per-foot and per-10-foot pricing for standard spiral pipe sections. These are useful starting points, but they’re material-only figures. They don’t include fittings, fabrication labour, insulation, or installation, all of which change the final number significantly.
Here’s how sizing generally breaks down for Montreal buyers:
- Small residential (3 to 6 inches, 26 to 24 gauge): the lowest per-foot cost, suited to single-family duct runs and light renovation work.
- Mid-size commercial (8 to 12 inches, 22 to 20 gauge): moderate per-foot cost, common in small commercial spaces and multi-unit buildings.
- Larger commercial or industrial diameters (above 12 inches, 20 to 18 gauge): the highest per-foot cost, often reserved for industrial ventilation or large commercial mechanical rooms.
Package pricing works differently from catalogue per-foot pricing. A package bundles a defined length, a set of fittings, and sometimes installation into a single quoted price. Catalogue pricing suits a rough material estimate when you already know your exact run length and diameter; package pricing suits a reader who wants one number covering most of a small project. Either way, the final installed cost in Montreal depends on the drivers covered next.
What affects price: material, gauge, insulation, and labour
Several factors stack on top of base material cost, and understanding them helps you spot an incomplete quote before you commit to it.
- Gauge and material largely set the material floor. Galvanized steel is the standard choice for most residential and light commercial runs, while stainless steel or aluminum raise per-foot cost because of both material price and more demanding fabrication.
- Fittings, transitions, and custom offsets add per-piece costs on top of straight duct sections. Elbows, reducers, and tees are priced individually and can add up quickly on a run with several direction changes.
- Insulation, acoustic lining, and vapour barriers are premium additions that raise both material and labour cost, particularly where duct insulation choices need to meet code-compliant thermal or condensation requirements.
- Shop labour and project complexity affect fabrication time, and more complex layouts with tight tolerances or unusual transitions take longer to build.
- Transport and on-site installation are separate from fabrication cost entirely, covering hoisting, sealing, connections, and the labour needed to fit duct into an existing building.
Pro Tip: Ask any supplier to break a quote into three clear lines, fabrication, fittings, and installation, so you can compare apples to apples across multiple bids.
Sample budgets: what 10 feet, 20 feet, or a small package actually costs
Numbers are easier to use when they’re attached to a real scenario. Here are three simplified examples based on catalogue-style material pricing, clearly separated from labour and installation.
- 10-foot run, 6-inch residential duct: material cost at a mid-range per-foot catalogue price, plus two fittings, plus a modest shop labour allowance for cutting and assembly, before any installation charge.
- 20-foot run, 8-inch commercial duct: material cost scales up with the larger diameter and heavier gauge, plus three to four fittings for direction changes, plus a larger labour allowance reflecting the added complexity.
- Small custom package (defined length plus standard fittings): a bundled starting price that covers material and basic fittings, with installation quoted separately once a fabricator reviews your site.
One thing worth clarifying before you search further: an industrial spiral duct forming machine, the equipment that fabricators use to produce spiral pipe, carries a price in the tens of thousands of Canadian dollars (one listed example is priced in that range). That figure has nothing to do with what you’ll pay for finished, fabricated duct. It’s a capital equipment purchase for a fabrication shop, not a cost comparison for a homeowner or contractor who simply needs duct made and installed.
How to get an accurate quote from a Montreal fabricator
A fast, accurate quote depends on how much information you hand over up front. Fabricators work faster, and more precisely, when they aren’t guessing at missing details.
- Measure every run and note total length, diameter, and any changes in direction or elevation.
- List every fitting you expect to need, including elbows, reducers, and transitions.
- Confirm gauge requirements if you already know them, or ask the fabricator to recommend one based on your application.
- Note access constraints, such as tight mechanical rooms, low ceilings, or limited crane access, since these affect installation cost.
- Request an itemized quote that separates fabrication, fittings, transport, and installation into distinct lines.
- Ask about Quebec Construction Code compliance, since the Quebec Construction Code and the adopted National Building Code set technical requirements that affect how ductwork gets reviewed and installed in the province.
- Ask for a fabrication and installation timeline so you can plan around shop production time separately from on-site work.
If you’re still finalizing your layout, our guide on duct types and fabrication questions and our rectangular duct sizing notes cover the measurement details that make quotes comparable across fabricators. For shops preparing formal drawings before quoting, CAD and shop drawing production resources outline what a complete drawing package typically includes.

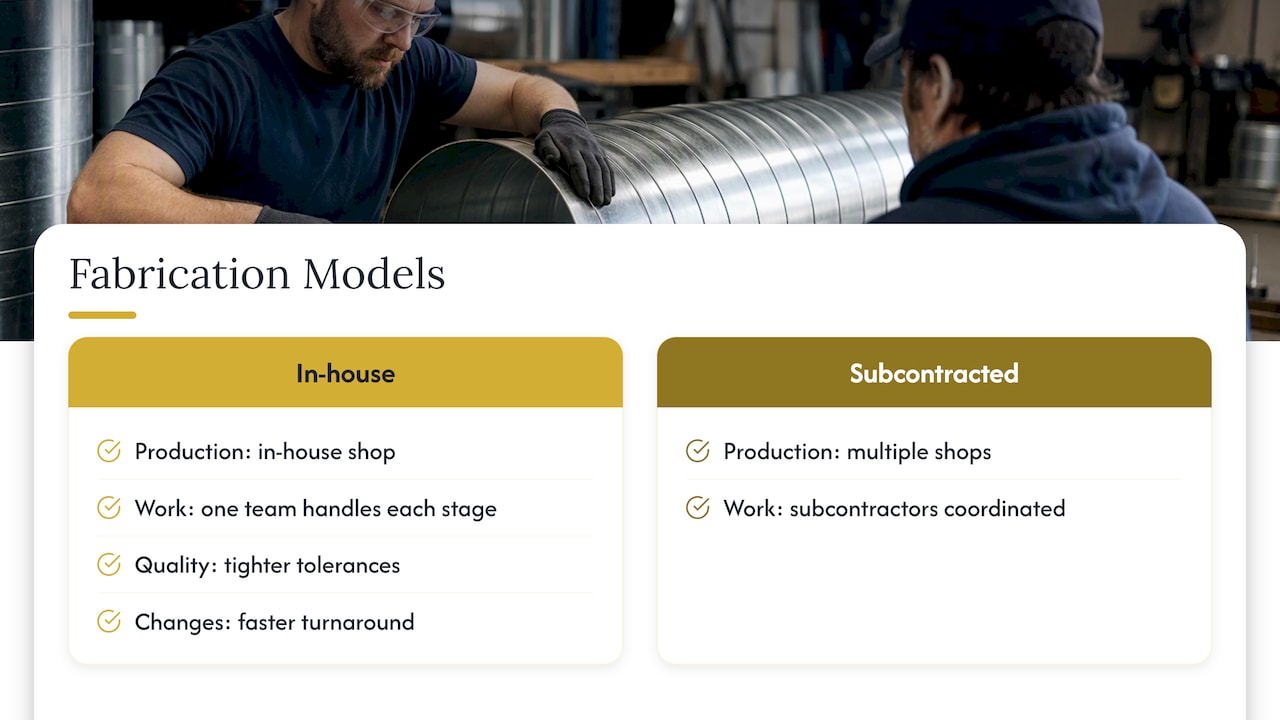

Why local, in-shop fabrication changes the value equation
Pricing spiral duct from a catalogue number alone misses the point. The real cost driver in Montreal isn’t the steel, it’s whether the fabricator doing the work controls quality and timeline in-house or is coordinating subcontractors across multiple shops. In-house fabrication means tighter tolerances, faster turnaround when a design changes mid-project, and a single point of accountability if something doesn’t fit on-site.
Buying a spiral-duct forming machine is an industrial decision that belongs to fabrication shops, not to the contractors and homeowners who need finished parts. Most readers researching this topic want fabricated duct or a complete package, not a piece of production equipment.
— Ash
Get a local, code-aware quote from Manara Corp
We fabricate custom metalwork, including railings, stairs, and fences, entirely in-house at our shop, then install it locally rather than subcontracting the work out. That means one team handles your measurements, your fabrication, and your install, so nothing gets lost between a sales call and a crew showing up on-site.

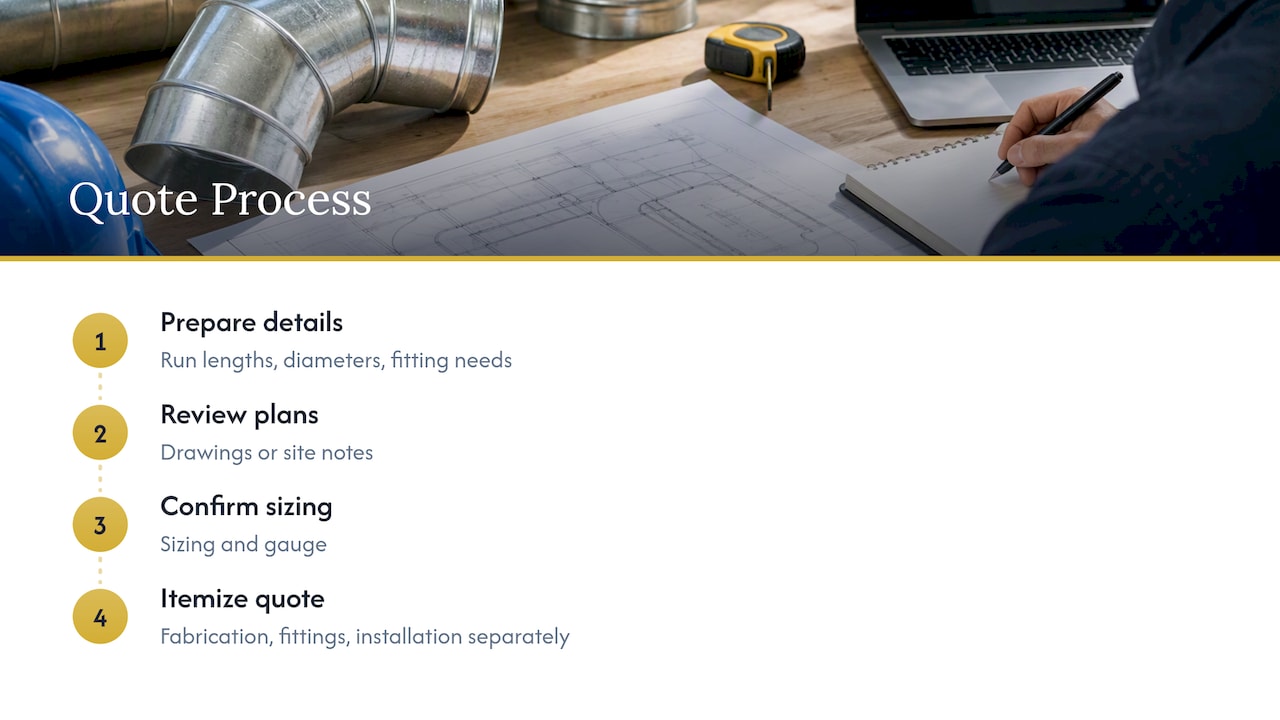

When you reach out, we review your drawings or site notes, confirm sizing and gauge, and return an itemized quote covering fabrication, fittings, and installation separately. We also handle laser cutting, sheet bending and rolling, profile rolling, and welding in steel, stainless steel, and aluminum, so custom fittings and transitions are made on the same floor as your duct.
Before you contact us, have your run lengths, diameters, and any known fitting requirements ready. Our services page outlines our full capabilities, or you can reach out directly to start a quote.
FAQ
How much does spiral ductwork cost?
Material-only spiral duct typically runs from roughly $8 to $25 per foot depending on diameter and gauge, based on catalogue-style supplier pricing. Fittings, insulation, shop labour, and installation are priced separately and can add substantially to that base figure.
How much does a spiral duct machine cost?
A spiral duct forming machine is industrial fabrication equipment, not something most project buyers need to purchase. One listed example is priced at $65,475, a cost relevant to fabrication shops, not to homeowners or contractors who simply need finished duct supplied and installed.
How much does 20 ft of ductwork cost?
A 20-foot run’s material cost depends entirely on diameter and gauge, with larger commercial sizes costing more per foot than small residential runs. Add fittings, shop labour, and installation separately, since catalogue per-foot prices cover material only.
How much is an insulated spiral duct?
Insulated spiral duct costs more than bare duct because insulation, acoustic lining, or vapour barriers add both material and labour, particularly where code-compliant insulation choices are required. Exact pricing depends on insulation type and thickness, so an itemized quote is the only reliable way to confirm the added cost.
Can Manara Corp fabricate and install spiral duct in Montreal?
Yes, we fabricate custom ductwork in-house at our Lachine shop and install it locally across Greater Montreal. Pricing isn’t published since every project’s dimensions, gauge, and fittings differ, so we provide itemized quotes after reviewing your measurements.
